Goodwin Barsby 42x30 Series 5

42"x30" | 1065x760mm HD Single Toggle Crusher.

  • Manufactured in the United Kingdom.
  • Year of manufacture 2022.
  • Machine number 30645.
  • Capable of upto 360 tonnes per hour.
  • Minimum closed side setting 3½" | 90mm.
  • Heavy duty thermally stress relieved main frame.
  • Heavy duty cast steel jawstock.
  • Eccentric shaft fitted with oversize SKF bearings.
  • Single section premium manganese jaw plates.
  • Hydraulic adjustment aid system.
  • Approximate weight 28,000 Kgs.
  • Goodwin Barsby standard new equipment warranty.

Optional extras (not included)

  • Genuine crusher spares package.
  • 110-132kW | 150-175 Hp Electric motor.
  • Motor pulley and drive belts.
  • SKF automatic lubrication system.
  • Sectional jaw plates.
  • Electric starter control panel
Price: On application Condition: New April'24 Build Status: Under Construction

Downloads

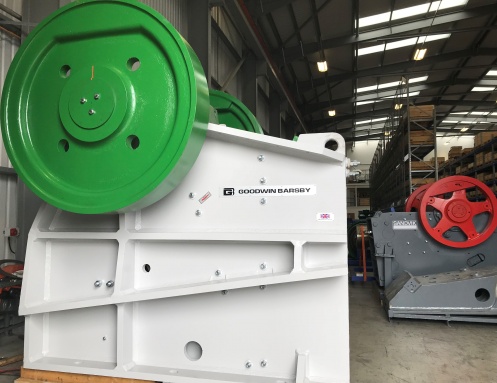

  • Goodwin Barsby 42x30 Series 5

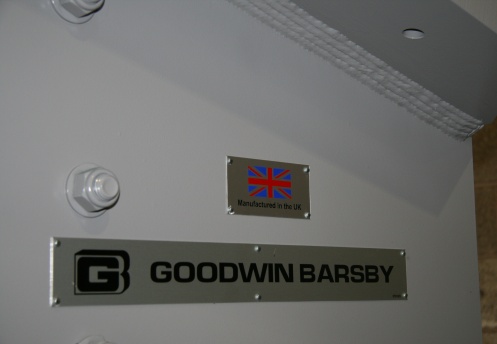

  • Goodwin Barsby nameplate

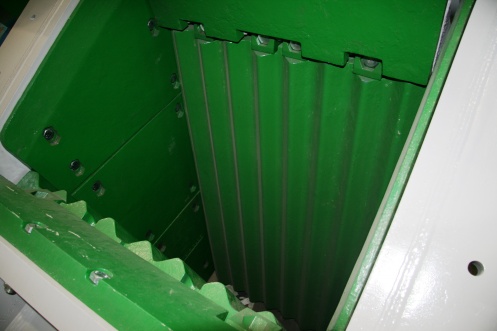

  • Jaw Chamber 42x30 Series 5
