Crushers.co.uk

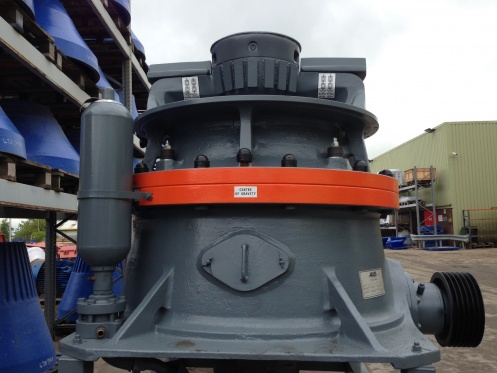

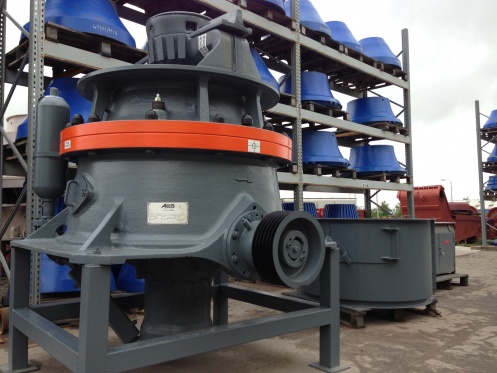

CH430 | H3800 Hydrocone Cone Crusher EC2.

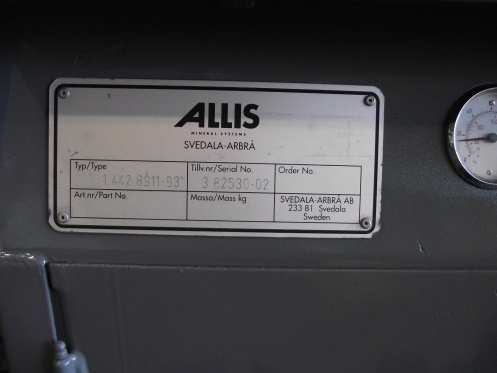

• Manufactured in Sweden by Svedala-Arbra AB.
• Serial no. 9037 H3000-FB-EC2/M29/32/34/36:1
• Hydrocone® - brand of Sandvik™.
• Equivalent to Sandvik™ H3800 | CH430 models.
• Refurbished by CMS Cepcor™.
• Refurbished pinion shaft housing.
• Refurbished topshell with hardox spider wear blocks.
• New Concave ring F and Mantle B.
• New set of bottom shell wearing plates.
• New gear and pinion set.
• New bottom shell and eccentric bushing.
• New spider bushing, spider seal and mainshaft sleeve.
• New piston wear plate, mainshaft step and step washer.
• New SKF pinion shaft bearings, spacers and seals.

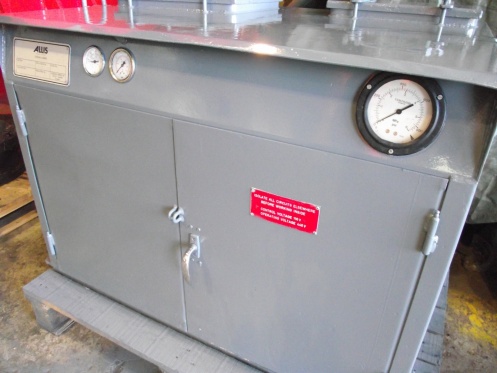

• Original Svedala lubrication system with new pump.
• New lubrication system motor, coupling and cooler.

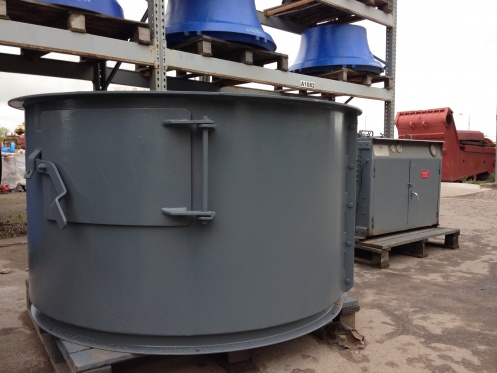

• Original good Svedala feed hopper.
• Painted in new Sandvik™ grey | orange livery.
• Travel frame.

Optional extras (not included)

• Crusher spares package.
• Electric motor.
• Motor pulley and drive belts.
• Live frame.
